Iron Oxide Pigment: Application and Process Requirements

For iron oxide pigment, retain the specified pigment identity and avoid deposits that alter color consistency. Start with aqueous iron-oxide filter cake, and identify the volatile phase and incoming variability before choosing a cycle.

Feed, Quality and Downstream Interface

Loading and Material Movement

Include moisture, shade, sieve residue and dispersibility in the trial record. Define the sampling locations and analytical methods before the test; a result from a different grade, loading pattern or residual liquor cannot establish the operating endpoint for this feed.

Drying Endpoint and Acceptance

Compare representative mixed-batch, discharge and retained-heel samples.

Rake agitation is not a freeze-drying or calcination process.

Material-Specific Configuration

Vacuum Rake Dryer selection for this feed should be assessed alongside the agitated vacuum dryer process description. Evaluate industrial vacuum dryer and low-temperature vacuum drying with representative iron oxide pigment. This chemical powder drying application requires a material-specific sampling and acceptance plan.

After the batch meets the agreed specification, arrange contained pigment handling before blending or packaging. Examine the effect of discharge, temporary holding and packaging exposure on the measured product condition. Establish the usable batch and cycle for this material; the original model parameters below remain the equipment reference, not a throughput promise for every formulation.

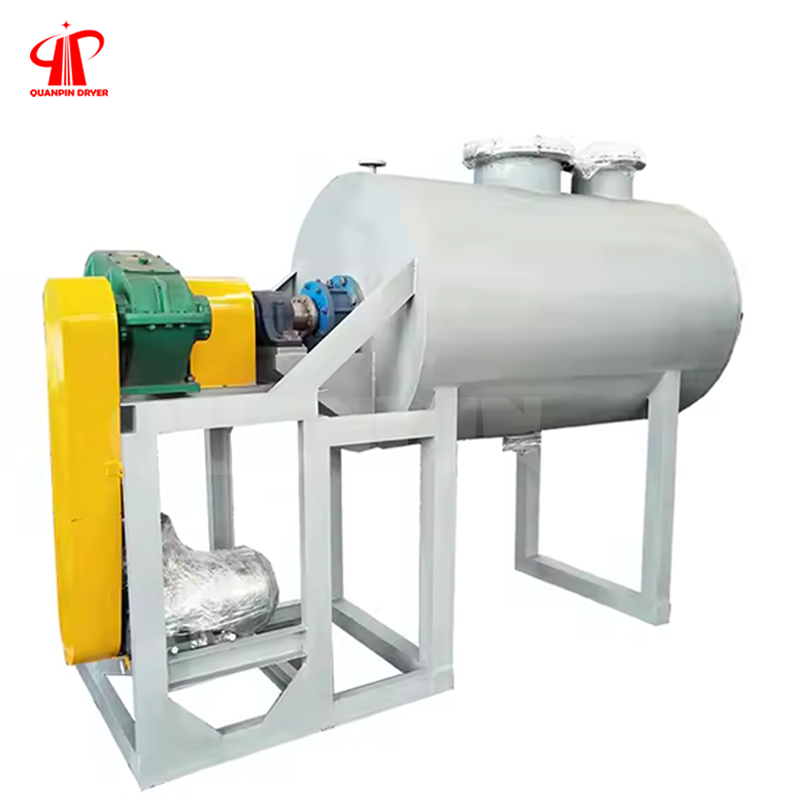

View the ZKG Vacuum Harrow(Rake) Dryer range and original equipment specifications

Technical References for This Application

Review the supplier SDS for the actual grade and residual process liquor. HSE safety-data-sheet guidance.

Assess charging, sampling, cleaning and discharge around the selected material. HSE process exposure assessment.

Use the actual powder test data when defining dust collection and handling. HSE combustible-dust handling guidance.

Review operation, access, maintenance and the agreed equipment supply scope. HSE work-equipment selection guidance.

Define the heat-transfer duty and utilities rather than assuming a universal drying cycle. U.S. DOE process-heat reference.
