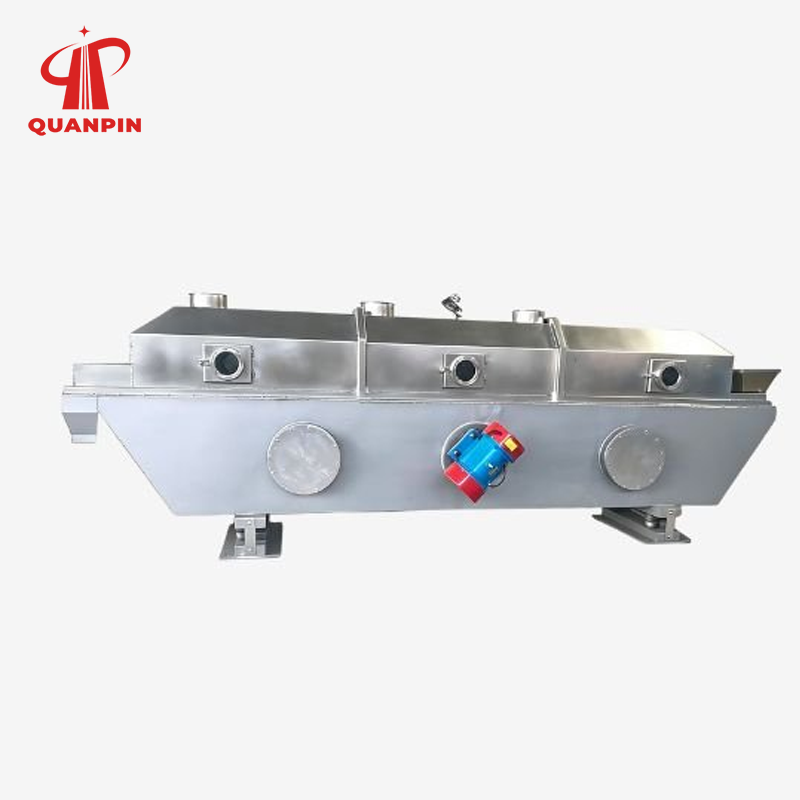

ZDG Vibrating Fluid Dryer for Food Ingredient Processing: Citric Acid Crystals
ZDG Vibrating Fluid Dryer is evaluated for citric acid crystals in food ingredient processing. The defined feed is centrifuged citric acid crystals of the specified hydrate form. Match this duty to the material checks below and the unchanged original equipment parameters.
Citric Acid Crystals: Application and Process Requirements
For citric acid crystals, preserve hydrate identity while avoiding sticky bed deposits. Begin with centrifuged citric acid crystals of the specified hydrate form and confirm how the incoming grade varies before defining the drying cycle.
Feed, Product Quality and Downstream Handling
| Review item | Citric Acid Crystals |
|---|---|
| Defined feed | centrifuged citric acid crystals of the specified hydrate form |
| Material-specific focus | preserve hydrate identity while avoiding sticky bed deposits |
| Product checks | moisture, assay, hydrate form and crystal size |
| Downstream handling | controlled cooling before food-additive storage |
Material Movement and Drying Control
Include moisture, assay, hydrate form and crystal size in the trial record. Fix the sampling locations and analytical methods before comparing trials; feed preparation and cooling can affect the measured result.
Drying Endpoint and Product Acceptance
After acceptance, arrange controlled cooling before food-additive storage. Review discharge, temporary holding and packaging exposure as part of the moisture-control plan.
Application-Specific Equipment Selection
ZDG Vibrating Fluid Dryer selection for citric acid crystals starts with Vibrating Fluid Bed Dryer requirements and the defined feed. Assess vibratory fluidized bed dryer and fluid bed drying together with granule drying; the continuous fluidized bed dryer duty must be demonstrated using representative material and the required finished-product specification.
View the ZDG Vibrating Fluid Dryer range and original equipment specifications
Technical References for This Application
Define hygiene and contamination controls for the food process. FDA food manufacturing practices.
Review food-hygiene planning alongside the drying operation. Codex food-hygiene resources.
Evaluate the finished ingredient using the agreed water-activity method. FDA water-activity reference.
Review the dust characteristics of the collected dry material. HSE combustible-dust guidance.
Review the thermal duty and utilities for the actual feed. U.S. DOE process-heat reference.
Equipment Reference Parameters
These are the ZDG Vibrating Fluid Dryer model specifications. The operating duty for citric acid crystals must be established from the feed and the finished-product requirements above.
| Model | Area of fluidized-bed (m²) | Temperature of air inlet (°C) | Temperature of air outlet (°C) | Capacity to vapor moisture (kg/h) | Vibration motor | Power (kW) |
|---|---|---|---|---|---|---|
| ZDG3×0.30 | 0.9 | 70~140 | 40~70 | 20~35 | YED10-6 | 0.75×2 |
| ZDG4.5×0.30 | 1.35 | 70~140 | 40~70 | 35~50 | YED10-6 | 0.75×2 |
| ZDG4.5×0.45 | 2.025 | 70~140 | 40~70 | 50~70 | YED16-6 | 1.1×2 |
| ZDG4.5×0.60 | 2.7 | 70~140 | 40~70 | 70~90 | YED16-6 | 1.1×2 |
| ZDG6×0.45 | 2.7 | 70~140 | 40~70 | 80~100 | YED20-6 | 1.5×2 |
| ZDG6×0.60 | 3.6 | 70~140 | 40~70 | 100~130 | YED20-6 | 1.5×2 |
| ZDG6×0.75 | 4.5 | 70~140 | 40~70 | 120~140 | YED20-6 | 1.5×2 |
| ZDG6×0.9 | 5.4 | 70~140 | 40~70 | 140~170 | YED20-6 | 1.5×2 |
| ZDG7.5×0.60 | 4.5 | 70~140 | 40~70 | 130~150 | YED30-6 | 2.2×2 |
| ZDG7.5×0.75 | 5.625 | 70~140 | 40~70 | 150~180 | YED30-6 | 2.2×2 |
| ZDG7.5×0.90 | 6.75 | 70~140 | 40~70 | 160~210 | YED30-6 | 2.2×2 |
| ZDG7.5×1.2 | 9 | 70~140 | 40~70 | 200~260 | YED40-6 | 3.0×2 |
| Model | Bed area (m²) | Inlet (°C) | Outlet (°C) | Evaporation (kg/h) | Motor | Power (kW) |
| ZDG3×0.30 | 0.9 | 70–140 | 40–70 | 20–35 | YZS8-6 | 0.75×2 |
| ZDG4.5×0.30 | 1.35 | 70–140 | 40–70 | 35–50 | YZS10-6 | 0.75×2 |
| ZDG4.5×0.45 | 2.025 | 70–140 | 40–70 | 50–70 | YZS15-6 | 1.1×2 |
| ZDG4.5×0.60 | 2.7 | 70–140 | 40–70 | 70–90 | YZS15-6 | 1.1×2 |
| ZDG6×0.45 | 2.7 | 70–140 | 40–70 | 80–100 | YZS15-6 | 1.5×2 |
| ZDG6×0.60 | 3.6 | 70–140 | 40–70 | 100–130 | YZS20-6 | 1.5×2 |
| ZDG6×0.75 | 4.5 | 70–140 | 40–70 | 120–170 | YZS20-6 | 2.2×2 |
| ZDG6×0.90 | 5.4 | 70–140 | 40–70 | 140–170 | YZS30-6 | 2.2×2 |
| ZDG7.5×0.60 | 4.5 | 70–140 | 40–70 | 130–150 | YZS30-6 | 2.2×2 |
| ZDG7.5×0.75 | 5.625 | 70–140 | 40–70 | 150–180 | YZS40-6 | 3.0×2 |
| ZDG7.5×0.90 | 6.75 | 70–140 | 40–70 | 160–210 | YZS40-6 | 3.0×2 |
| ZDG7.5×1.20 | 9.0 | 70–140 | 40–70 | 200–280 | YZS50-6 | 3.7×2 |
| ZDG7.5×1.50 | 11.25 | 70–140 | 40–70 | 230–330 | YZS50-6 | 3.7×2 |
| ZDG8×1.80 | 14.4 | 70–140 | 40–70 | 290–420 | YZS75-6 | 5.5×2 |
| Item | Project specification |
| Equipment | Vibration-assisted fluid bed dryer |
| Heating | Select for available utilities |
| Contact materials | Confirm chemical compatibility and cleaning needs |
| Controls | Define temperature, airflow and vibration monitoring |
| Dimensions | Select from the process duty and layout |
| Documentation | Confirm required drawings, manuals and inspection records |
Discuss Citric Acid Crystals Drying
Send QUANPIN the incoming citric acid crystals specification, sample information and the required final product condition for an equipment review.
