YPG Pressure Spray Dryer for Food Ingredient Processing: Maltodextrin Powder
YPG Pressure Spray Dryer is evaluated for maltodextrin powder in food ingredient processing. The defined feed is filtered maltodextrin solution at the agreed solids content. Match this duty to the material checks below and the unchanged original equipment parameters.
Maltodextrin Powder: Application and Process Requirements
For maltodextrin powder, review viscosity and sticky-point behavior rather than copying a milk powder cycle. Begin with filtered maltodextrin solution at the agreed solids content and confirm how the incoming grade varies before defining the drying cycle.
Feed, Product Quality and Downstream Handling
| Review item | Maltodextrin Powder |
|---|---|
| Defined feed | filtered maltodextrin solution at the agreed solids content |
| Material-specific focus | review viscosity and sticky-point behavior rather than copying a milk powder cycle |
| Product checks | moisture, particle size, dextrose equivalent and solubility |
| Downstream handling | controlled cooling before ingredient bagging |
Material Movement and Drying Control
Include moisture, particle size, dextrose equivalent and solubility in the trial record. Fix the sampling locations and analytical methods before comparing trials; feed preparation and cooling can affect the measured result.
Drying Endpoint and Product Acceptance
After acceptance, arrange controlled cooling before ingredient bagging. Review discharge, temporary holding and packaging exposure as part of the moisture-control plan.
Application-Specific Equipment Selection
YPG Pressure Spray Dryer selection for maltodextrin powder starts with Pressure Spray Dryer requirements and the defined feed. Assess Industrial spray dryer machine and Spray Drying together with Spray drying equipment; the industrial food dryer duty must be demonstrated using representative material and the required finished-product specification.
View the YPG Pressure Spray Dryer range and original equipment specifications
Technical References for This Application
Define hygiene and contamination controls for the food process. FDA food manufacturing practices.
Review food-hygiene planning alongside the drying operation. Codex food-hygiene resources.
Evaluate the finished ingredient using the agreed water-activity method. FDA water-activity reference.
Review the dust characteristics of the collected dry material. HSE combustible-dust guidance.
Review the thermal duty and utilities for the actual feed. U.S. DOE process-heat reference.
Equipment Reference Parameters
These are the YPG Pressure Spray Dryer model specifications. The operating duty for maltodextrin powder must be established from the feed and the finished-product requirements above.
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000-10000 |
|---|---|---|---|---|---|---|---|
| Water Evaporation Capacity (kg/h) | 50 | 100 | 150 | 200 | 300 | 500 | 1000-10000 |
| Overall Dimensions (Φ × H) (mm) | 1600×8900 | 2000×1711500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | / |
| High-Pressure Pump Pressure (MPa) | 2-10 | ||||||
| Power kW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30-300 |
| Inlet Air Temperature (°C) | 200-300 | ||||||
| Final Product Moisture Content (%) | < 5(0.5) | ||||||
| Product Recovery (%) | > 97 | ||||||
| Electric Heating (kW) | 79 | 120 | 150 | For temperatures below 200°C, specific values are calculated based on actual conditions. | |||
| Steam + Electric Heating (MPa + kW) | 0.5 +54 | 0.6+90 | 0.6+108 | ||||
| Hot-Air Furnace Capacity (×10⁴ kcal/h) | 10 | 15 | 20 | 30 | 40 | 50 | 120-1200 |
| Selection Item | Information Required |
| Feed | Material composition, solids content and viscosity |
| Capacity | Planned liquid feed and finished product output |
| Product | Target moisture, particle size and bulk properties |
| Heating | Available heat source and utility conditions |
| Construction | Contact material and cleaning requirements |
| Installation | Space, height and upstream/downstream connections |

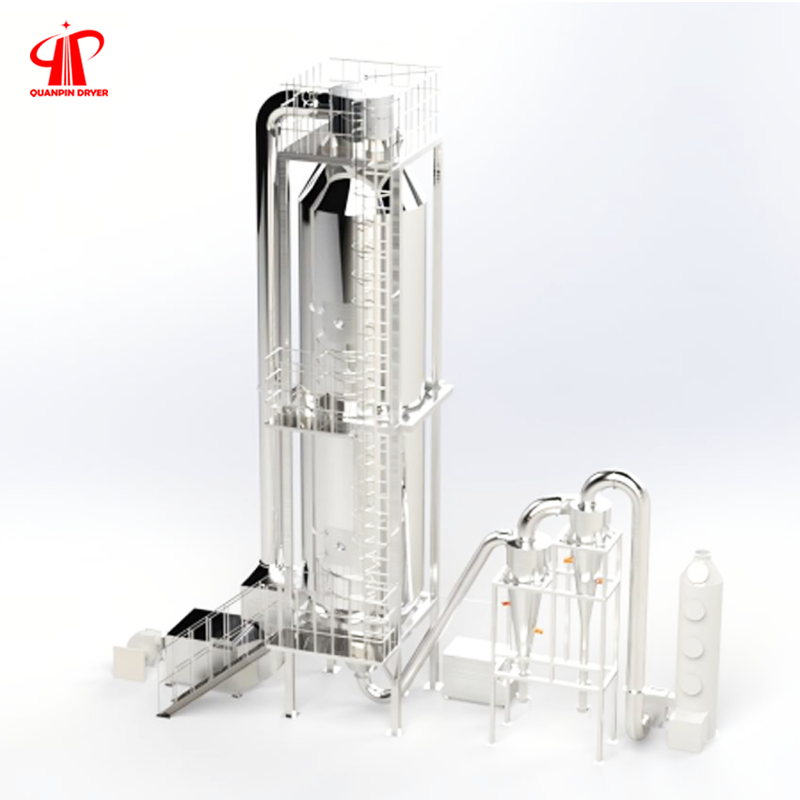

Equipment Views
Discuss Maltodextrin Powder Drying
Send QUANPIN the incoming maltodextrin powder specification, sample information and the required final product condition for an equipment review.
