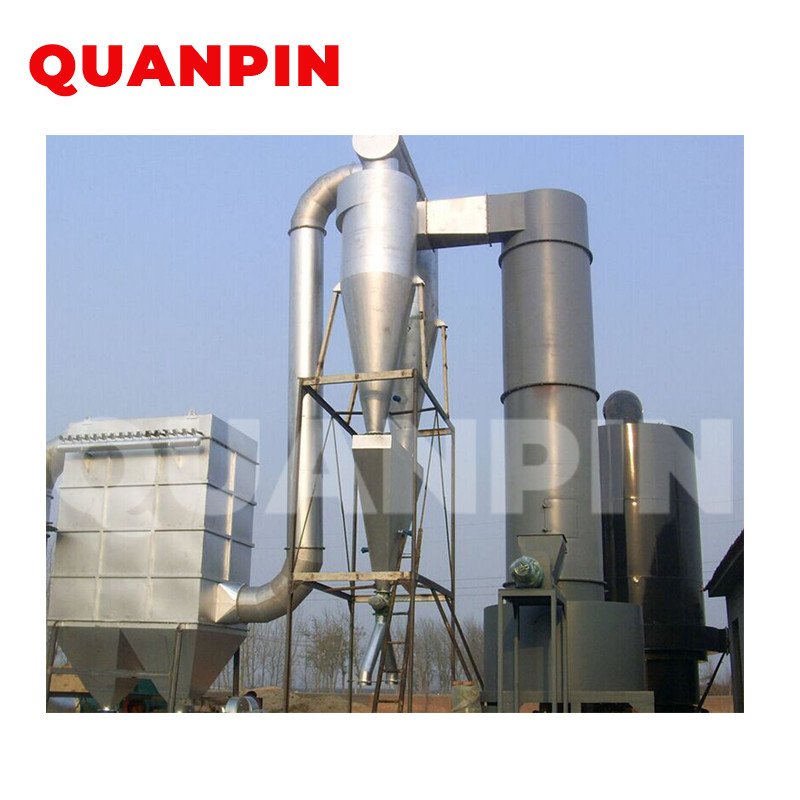

XSG Rotating Flash Dryer for Chemical and Mineral Processing: Iron Oxide Pigment Powder
XSG Rotating Flash Dryer is evaluated for iron oxide pigment powder in chemical and mineral processing. The defined feed is washed iron oxide pigment cake of a specified color grade. Match this duty to the material checks below and the unchanged original equipment parameters.
Iron Oxide Pigment Powder: Application and Process Requirements
For iron oxide pigment powder, control temperature exposure and color consistency rather than assuming all oxide grades behave alike. Begin with washed iron oxide pigment cake of a specified color grade and confirm how the incoming grade varies before defining the drying cycle.
Feed, Product Quality and Downstream Handling
| Review item | Iron Oxide Pigment Powder |
|---|---|
| Defined feed | washed iron oxide pigment cake of a specified color grade |
| Material-specific focus | control temperature exposure and color consistency rather than assuming all oxide grades behave alike |
| Product checks | moisture, color coordinates, tint strength and particle size |
| Downstream handling | enclosed pigment collection and packaging |
Material Movement and Drying Control
Include moisture, color coordinates, tint strength and particle size in the trial record. Fix the sampling locations and analytical methods before comparing trials; feed preparation and cooling can affect the measured result.
Drying Endpoint and Product Acceptance
After acceptance, arrange enclosed pigment collection and packaging. Review discharge, temporary holding and packaging exposure as part of the moisture-control plan.
Application-Specific Equipment Selection
XSG Rotating Flash Dryer selection for iron oxide pigment powder starts with spin flash dryer requirements and the defined feed. Assess powder drying and Industrial drying equipment together with chemical dryers; the chemical powder drying duty must be demonstrated using representative material and the required finished-product specification.
View the XSG Rotating Flash Dryer range and original equipment specifications
Technical References for This Application
Obtain the SDS for the actual grade and residual process liquor. HSE safety-data-sheet guidance.
Assess charging, sampling, cleaning and discharge for the selected material. HSE exposure-assessment guidance.
Review the dust characteristics of the collected dry material. HSE combustible-dust guidance.
Review operation and maintenance around the specified equipment configuration. HSE work-equipment guidance.
Review the thermal duty and utilities for the actual feed. U.S. DOE process-heat reference.
Equipment Reference Parameters
These are the XSG Rotating Flash Dryer model specifications. The operating duty for iron oxide pigment powder must be established from the feed and the finished-product requirements above.
| Model | ID of Main Machine(mm) | Air Amount (m³/h) | Evaporated Moisture(kg) | Max. Equipped Capacity (kw) | Max. Height (m) | Occupied Area (m²) |
|---|---|---|---|---|---|---|
| XSG-2 | 200 | 350-500 | 12-17 | 6~10 | 4 | 15 |
| XSG-4 | 400 | 1150-2000 | 40-70 | 12~20 | 4.8 | 20 |
| XSG-6 | 600 | 2450-4500 | 80-150 | 24~40 | 5.8 | 28 |
| XSG-8 | 800 | 4450-7550 | 150-250 | 38~65 | 6.4 | 35 |
| XSG-10 | 1000 | 7000-12500 | 230-420 | 55~90 | 7.1 | 40 |
| XSG-12 | 1200 | 10000-18000 | 300-600 | 80~135 | 7.8 | 52 |
| XSG-16 | 1600 | 18000-30500 | 600-1000 | 160~270 | 8.5 | 80 |
| XSG-20 | 2000 | 50000-78000 | 1000~1500 | 250~430 | 10.1 | 150 |
| Name of raw material | Temperature of air heat (°C) | Primary moisture (%) | Final moisture (%) | Practical dry capacity (kg/h) |
|---|---|---|---|---|
| ZDC Accelerant | 150 | 60 | 0.5 | 80~110 |
| Oil Solve Ink | 150 | 45 | 2 | 350~380 |
| Silicinate Zinc Mararose | 120 | 30 | 1 | 120~150 |
| Pinhealing-yanin Dye | 150 | 55 | 1 | 160~180 |
| Calcium Citrate | 140 | 40 | 1 | 300~350 |
| Superfine Calcium Carbonate | 160 | 70 | 1.5 | 430~470 |
| Kurry Treatment Agent | 200 | 75 | 5 | 290~310 |
| Sodium Isocyanurate Dioxide | 180 | 25 | 0.2~2 | 80~120 |
| Sodium Isocyanurate Trioxide | 150 | 30 | 1 | 90~150 |
| Zinc Shemate | 150 | 80 | 0.5 | 140~160 |
| Aluminum Hydroxide | 180 | 55 | 1.5 | 250~280 |
| Zinc Carbonate | 150 | 80 | 1 | 130~170 |
| Insecticide | 120 | 30 | 1 | 80~110 |
| TMTD | 140 | 65 | 0.5 | 80~120 |
| DSD acid | 150 | 60 | 0.5 | 80~120 |
| Ferric oxide red | 200 | 60 | 0.5 | 300~350 |
| Antimony Dioxide | 180 | 45 | 1 | 280~320 |
| Cuprous Chloride | 200 | 20 | 3 | 290~310 |
| White Carbon Black | 280 | 85 | 5 | 250~300 |
| Selection Item | Information Required |
| Feed material | Composition, consistency and bulk density |
| Moisture | Initial moisture and target final moisture |
| Throughput | Required feed rate and finished product output |
| Temperature | Product temperature limit and available heating utilities |
| Powder | Required particle characteristics and collection method |
| Installation | Site dimensions, utilities and process connections |
| Material Group | Information for Assessment | Trial Review |
| Agricultural chemicals | Composition and handling requirements | Moisture removal and product properties |
| Ceramic materials | Feed consistency and particle requirements | Dispersion and collection |
| Food materials | Ingredient properties and cleaning scope | Temperature exposure and powder quality |
| Inorganic chemicals | Composition and compatibility | Drying behavior and collection |
| Organic chemicals | Material and vapor properties | Process suitability |
Discuss Iron Oxide Pigment Powder Drying
Send QUANPIN the incoming iron oxide pigment powder specification, sample information and the required final product condition for an equipment review.
