Pharmaceutical Pulverizer Unit: Plan Time-Resolved Sampling of Accepted Excipient Powder
By QUANPIN
A single composite powder sample can conceal differences between the beginning, middle and end of an excipient milling run. Plan sampling intervals before evaluating the pharmaceutical pulverizer unit.
The purpose is to understand delivered powder across the agreed operating period, while preserving traceability to feed events and collection conditions. See the matching pharmaceutical industry applications.
Which Period Does Each Accepted-Powder Sample Represent?
Define which material counts as accepted output and when each sample is taken. Keep interval results separate until the analytical review is complete.
Time-resolved sampling means relating a sample to a stated collection interval. It does not mean that sampling must be continuous or that every application needs the same frequency. Use product-specific development knowledge to justify the attributes being examined. See FDA ICH Q8 pharmaceutical development.
Equipment Principle and Material Requirements
The pulverizer reduces material mechanically and transfers the resulting powder through the specified collection arrangement. In pharmaceutical powder grinding, the feed and product measurement method must be stated together.
Residence and collection effects can separate the time of feeding from the time of powder recovery, so the sampling boundary needs explicit description.
Five Steps for the Application Study
Identify accepted output
Identify the accepted-product collection point and confirm that it represents the supplied powder rather than an incidental deposit.
Specify collection intervals
Specify sample intervals and quantities through the development plan, considering the information needed and analytical feasibility.
Record operating events
Record feed starts, stops, lot changes and other relevant events on a common time reference.
Collect traceable samples
Collect and label each sample using an approved method that does not alter safe operation or contaminate the product.
Review individual results
Review individual results alongside the event record before deciding whether any interval requires further investigation.
Four Process Boundaries to Record
The feed boundary identifies excipient lot, condition and preparation before milling.
The operating boundary states which startup and stopping periods belong to the comparison.
The collection boundary distinguishes accepted powder from residues, rejects and unassessed material.
The test boundary defines the analytical method, sample preparation and decision criteria.

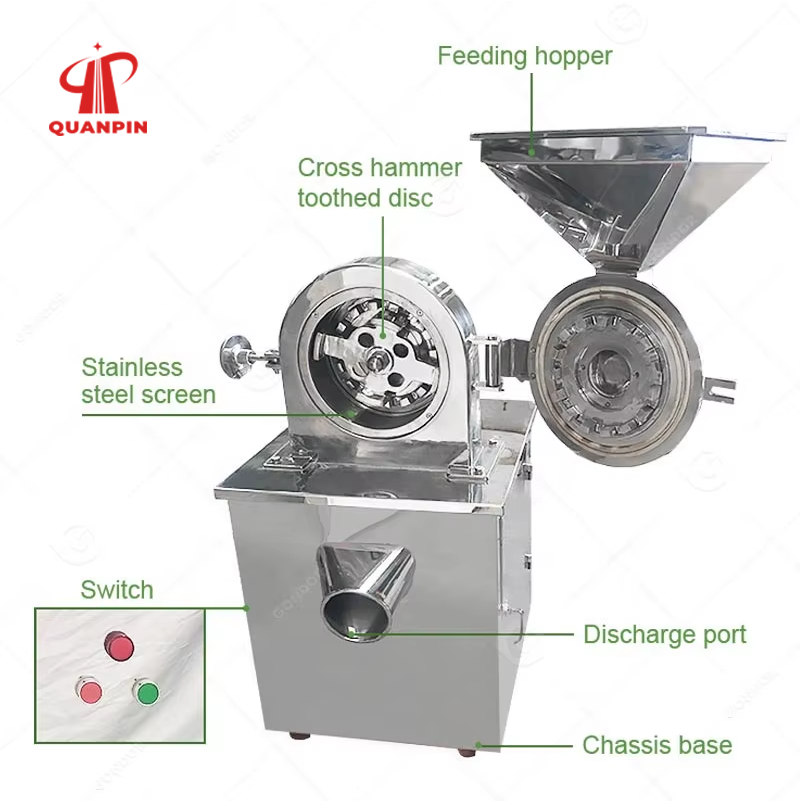

Pharmaceutical Pulverizer Unit Components and Interfaces
Feed inlet
Confirm the actual grinding configuration from the supplied equipment documents. Evaluate impact milling against the incoming and accepted distributions, with the collection boundary defined.
Impact and cutting chamber
Describe the feed arrangement, including the means used to record interruptions or charge changes. The powder collection assessment should include retained inventory and separately collected fractions.
Conveying air system
Identify the collection container and any changes of container during the run.
Cyclone separation
Review sampling access before the trial; do not assume a dedicated port is included.
Bag collection
Select suitable sample containers and labels for the excipient and intended test.
Discharge and balance records
Keep the operating log, collection record and laboratory sample register connected by unambiguous identifiers.
Comparison Choices and Process Interfaces
Define the Reference Basis
The reference run needs a defined feed lot and a documented collection sequence. Downstream dry blending needs powder whose relevant properties remain traceable after size reduction.
Retain individual interval samples when the approved study requires later investigation.
Make the start and end of the accepted-product period explicit.
Keep the Comparison Interpretable
For a comparison run, preserve the sampling point and analytical method where practical.
If the sampling method changes, document its effect on what the results can establish.
Do not interpret a different sample quantity as an equipment improvement without reviewing sampling effects.
Assess the Receiving Process
Assess the complete accepted collection period rather than selecting only favorable intervals. A receiving powder blender is a separate operation; its uniformity cannot be inferred from the mill result alone.
Report untested or unavailable intervals openly instead of interpolating results as measured facts.
Use the observed pattern to define the next investigation, including feed or collection influences where relevant.
Industry Application and Acceptance
Pharmaceutical excipient specifications should reflect their intended use and the relevant quality system.
Particle size may be important, but it does not automatically replace identity, contamination or other required attributes. A development comparison should not be presented as complete validation of an untested production process. See FDA process validation guidance.
Preserve laboratory methods and individual observations so a later reviewer can understand the acceptance decision.
Development sampling supports process knowledge; routine manufacturing controls require their own justified plan.
Benefits and Practical Limits
Interval sampling can reveal a changing output that a pooled sample would obscure. Check whether transfer into the specified powder mixer changes segregation or handling behavior.
It does not guarantee that every variation will be detected or establish an appropriate sampling frequency for all excipients. Assess relevant quality risks using the actual material and process context. See FDA ICH Q9 quality risk management.
Six Details That Affect the Result
Record the sample interval as a start and finish, not merely an approximate clock time.
Distinguish the collection time from the laboratory testing time.
Document container changes because they can define a practical boundary in the recovered product.
Record interruptions even when the equipment later returns to the same displayed setting. Interpret measurements through process understanding rather than treating an isolated instrument reading as product acceptance. See FDA process analytical technology framework.
Retain results below or above the target rather than deleting them from a summary.
Explain any pooling rule and preserve the supporting individual evidence where required.
Safety and Operating Requirements
Use sampling procedures compatible with the powder hazards, exposure controls and equipment guarding.
Cleaning and line-clearance arrangements must protect sample identity and the product-contact path between materials.
Prepare Your Equipment Enquiry
Provide QUANPIN with the excipient duty, target powder attributes and intended collection arrangement. Define the interface with downstream Mixing Equipment rather than treating grinding and blending as one machine duty.
Share the proposed sampling boundary and indicate whether downstream conveying or packaging belongs in the assessment. Where granulation follows milling, assess that later product independently under its own acceptance plan. Retain knowledge and manage adopted process changes through the pharmaceutical quality system. See FDA ICH Q10 pharmaceutical quality system.
Frequently Asked Questions
Can a pooled sample reveal interval variation?
A pooled sample can serve a defined purpose, but it cannot show the individual interval pattern after pooling.
Is there a universal sampling frequency?
The appropriate sampling frequency depends on the study question and process; this guide does not prescribe a universal interval.
How should startup material be treated?
Startup material should be handled according to the approved study and acceptance rules, not automatically counted as accepted product.
Does interval variation prove a mill fault?
Differences between intervals need investigation before being assigned solely to the pulverizer.
What if safe sampling access is unavailable?
Sampling from an unsafe or inaccessible location should be redesigned before the trial begins.
What makes the sampling enquiry useful?
A useful equipment enquiry includes both the desired powder and the evidence required to demonstrate it.
