KJG Hollow Paddle Dryer for Environmental Solids Processing: Paper Mill Sludge Solids
KJG Hollow Paddle Dryer is evaluated for paper mill sludge solids in environmental solids processing. The defined feed is dewatered fiber-rich paper mill sludge. Match this duty to the material checks below and the unchanged original equipment parameters.
Paper Mill Sludge Solids: Application and Process Requirements
For paper mill sludge solids, manage fibrous lumps, variable ash and paddle loading. Begin with dewatered fiber-rich paper mill sludge and confirm how the incoming grade varies before defining the drying cycle.
Feed, Product Quality and Downstream Handling
| Review item | Paper Mill Sludge Solids |
|---|---|
| Defined feed | dewatered fiber-rich paper mill sludge |
| Material-specific focus | manage fibrous lumps, variable ash and paddle loading |
| Product checks | dry solids, ash, fiber size and handling behavior |
| Downstream handling | controlled transfer to the agreed waste or fuel assessment route |
Material Movement and Drying Control
Include dry solids, ash, fiber size and handling behavior in the trial record. Fix the sampling locations and analytical methods before comparing trials; feed preparation and cooling can affect the measured result.
Drying Endpoint and Product Acceptance
After acceptance, arrange controlled transfer to the agreed waste or fuel assessment route. Review discharge, temporary holding and packaging exposure as part of the moisture-control plan.
Application-Specific Equipment Selection
KJG Hollow Paddle Dryer selection for paper mill sludge solids starts with Hollow Paddle Dryer requirements and the defined feed. Assess Contact Dryer and conductive drying together with indirect contact dryers; the sludge drying duty must be demonstrated using representative material and the required finished-product specification.
Identify the residual stream and its contaminants before selecting a drying route. Moisture reduction does not remove metals or establish a permitted disposal, fuel or land-application route.
View the KJG Hollow Paddle Dryer range and original equipment specifications
Technical References for This Application
Obtain the SDS for the actual grade and residual process liquor. HSE safety-data-sheet guidance.
Assess charging, sampling, cleaning and discharge for the selected material. HSE exposure-assessment guidance.
Review the dust characteristics of the collected dry material. HSE combustible-dust guidance.
Review operation and maintenance around the specified equipment configuration. HSE work-equipment guidance.
Review the thermal duty and utilities for the actual feed. U.S. DOE process-heat reference.
Equipment Reference Parameters
These are the KJG Hollow Paddle Dryer model specifications. The operating duty for paper mill sludge solids must be established from the feed and the finished-product requirements above.
| Specitem | KJG-3 | KJG-9 | KJG-13 | KJG-18 | KJG-29 | KJG-41 | KJG-52 | KJG-68 | KJG-81 | KJG-95 | KJG-110 | KJG-125 | KJG-140 |
| Heat transferring area(m²) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 | 125 | 140 |
| Effective volume(m³) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.07 | 9.46 | 10.75 | 12.18 |
| Range of rotating speed(rmp) | 15–30 | 10–25 | 10–25 | 10–20 | 10–20 | 10–20 | 10–20 | 10–20 | 5–15 | 5–15 | 5–10 | 1–8 | 1–8 |
| Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 30 | 45 | 55 | 75 | 95 | 90 | 110 |
| Width of vessel(mm) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1474 | 1652 | 1828 | 2032 | 2210 | 2480 | 2610 |
| total width(mm) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 1186 | 2438 | 2668 | 2732 | 2935 |
| Length of vessel(mm) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6122 | 7500 | 7860 |
| Total length(mm) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 9880 | 11800 | 129000 |
| Distance of material inlet&outlet(mm) |
1752 | 2540 | 2768 | 3048 | 3810 | 4420 | 4954 | 5384 | 5562 | 5664 | 5664 | 5880 | 5880 |
| Height of center(mm) | 380 | 380 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1220 | 1430 | 1560 | 1650 | 1856 |
| Total height(mm) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 | 2769 | 2838 |
| Steam inlet“N”(inch) | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 11/2 | 11/2 | 11/2 | 11/2 | 2 | ||
| water outlet”O”(inch) | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 11/2 | 11/2 | 11/2 | 11/2 | 2 |

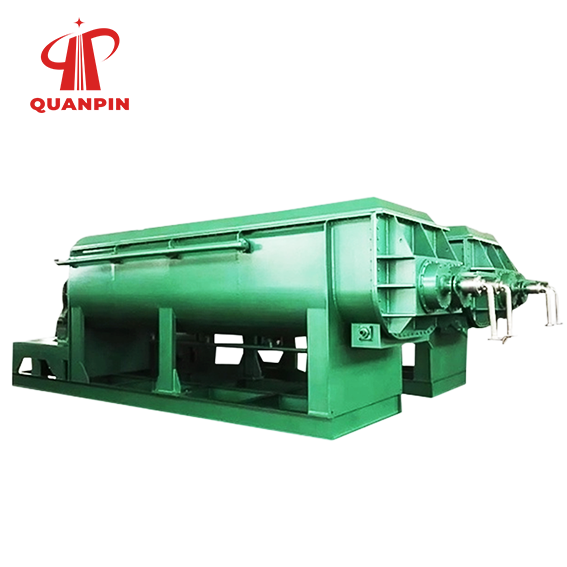

Equipment Views
Discuss Paper Mill Sludge Solids Drying
Send QUANPIN the incoming paper mill sludge solids specification, sample information and the required final product condition for an equipment review.
Start Optimizing Your
Drying Process Today.
Our engineers are ready to assess your material and recommend a reliable, cost-effective drying solution.
