Caffeine Crystals: Application and Process Requirements

For caffeine crystals, control residual process solvent and preserve the specified crystal and impurity profile. Start with isolated caffeine crystals, and identify the volatile phase and incoming variability before choosing a cycle.

Feed, Quality and Downstream Interface

Loading and Material Movement

Set layer depth, loading distribution and tray position; inspect the slowest drying locations.

Include moisture, residual solvent, assay and particle distribution in the trial record. Define the sampling locations and analytical methods before the test; a result from a different grade, loading pattern or residual liquor cannot establish the operating endpoint for this feed.

Material-Specific Configuration

Vacuum Tray Dryer selection for this feed should be assessed alongside the industrial vacuum dryer process description. Evaluate low-temperature vacuum drying and heat-sensitive material drying with representative caffeine crystals. This pharmaceutical vacuum drying application requires a material-specific sampling and acceptance plan.

After the batch meets the agreed specification, arrange contained qualified storage before formulation. Examine the effect of discharge, temporary holding and packaging exposure on the measured product condition. Establish the usable batch and cycle for this material; the original model parameters below remain the equipment reference, not a throughput promise for every formulation.

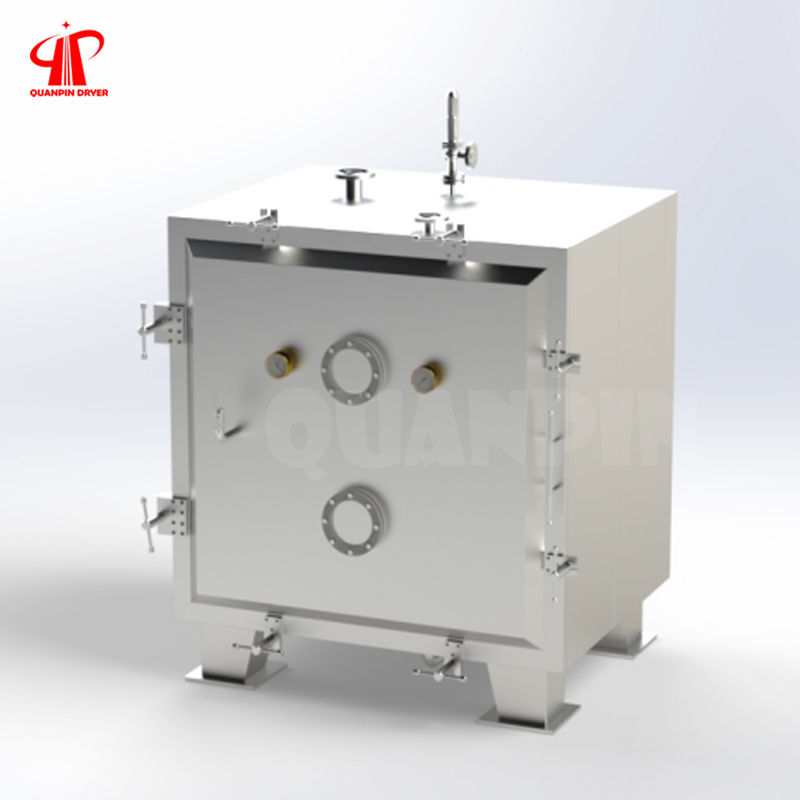

View the FZG Vacuum Tray Dryer range and original equipment specifications

Technical References for This Application

Agree material-specific sampling and acceptance criteria for the process. FDA process-validation guidance.

Review the quality and documentation requirements appropriate to the pharmaceutical duty. FDA Q7A manufacturing guidance.

Define product-contact surfaces, cleaning access and changeover requirements. FDA equipment and cleaning guidance.

Apply the relevant residual-solvent specification to the actual formulation; this is separate from water content. FDA ICH Q3C residual-solvent guidance.

Use the actual powder test data when defining dust collection and handling. HSE combustible-dust handling guidance.
