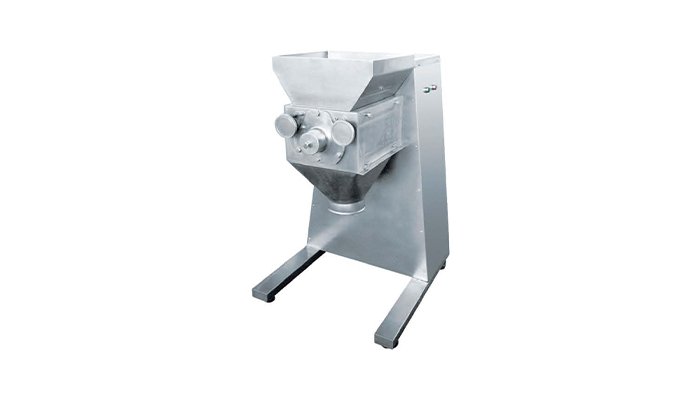

YK Series Oscillating Granulator for Pharmaceutical Powder and Granule Processing
Equipment: YK
Prepare granules or resize compatible agglomerates using an oscillating rotor and screen. The YK configuration should match the wet or dry condition of the feed. Review this granulation equipment within the complete process: a pharmaceutical granulator requires formulation-specific granulation trials and a defined interface with any downstream granule drying step.
Product Overview
Prepare granules or resize compatible agglomerates using an oscillating rotor and screen. The YK configuration should match the wet or dry condition of the feed.
Working Principle
A reciprocating rotor repeatedly works the feed against a screen. Suitable wet masses form granules as they pass through; compatible dry agglomerates can be broken down and screened in the same type of mechanism.
Key Features
- Oscillating rotor action works the batch through a screen.
- Screen openings are selected around the granule-size requirement.
- The feed condition determines whether the duty is granulation or sizing.
Suitable Materials
- Wet masses or dry agglomerates that are compatible with oscillating granulation and sizing.
- Assess the actual material properties, moisture or solvent content, temperature limits and required finished-product condition before selecting the machine.
Applications
Consider preparation of wet granules and conditioning of compatible dry agglomerates. Evaluate product strength and fines generation using a representative material trial.
Review our industry applications and confirm your process duty with QUANPIN.
Technical Parameters
On smaller screens, swipe the table sideways to view all models and values.
| Item | YK160 | YK320 |
|---|---|---|
| Production Capacity | 50–200 kg/h | 50–400 kg/h |
| Motor Power | 2.2 kW | 7.5 kW |
| Roller Speed | 65 rpm | 65 rpm |
| Oscillation Angle | 360° | 360° |
| Roller Diameter | Φ160 mm | Φ320 mm |
| Weight | 450 kg | 750 kg |
| Overall Dimensions | 1000×800×1300 mm | 1500×1200×1500 mm |
Confirm the selected configuration and material duty before ordering. Final dimensions, options and supply scope are recorded in the approved technical documents.
Selection and Configuration
Specify feed moisture, lump strength, batch size and the required particle range. Confirm rotor and screen arrangement, access for cleaning, output requirements and how the material will be handled after discharge.
For pharmaceutical installations, specify product-contact materials, containment, cleaning procedures, controls and documentation requirements. These are project requirements to be agreed, rather than an automatic claim of certification.
Frequently Asked Questions
What is this equipment used for?
Which material information should be supplied?
How should the configuration be verified?
Agree a representative feed, output requirement and acceptance method with QUANPIN. Review particle-size distribution, product recovery, temperature limits and cleanability as applicable to the selected process.
Request Pricing & Specifications
Send your material name, feed condition, required throughput, target particle range and cleaning requirements.
Application Review: Pharmaceutical Powder and Granule Processing
Review feed condition, moisture, screen or die selection and the required granule properties together. Confirm the interface with preparation, drying and transfer using representative material trials.
For pharmaceutical process evaluation, consult FDA process validation guidance.
For an active-ingredient application, review the equipment and documentation topics in FDA Q7A guidance.
For pharmaceutical cleaning requirements, consult the FDA equipment and cleaning questions.
Review the actual powder characteristics using the HSE safe handling of combustible dusts.
Include moving-part access in the installation review using HSE work equipment and guarding guidance.
